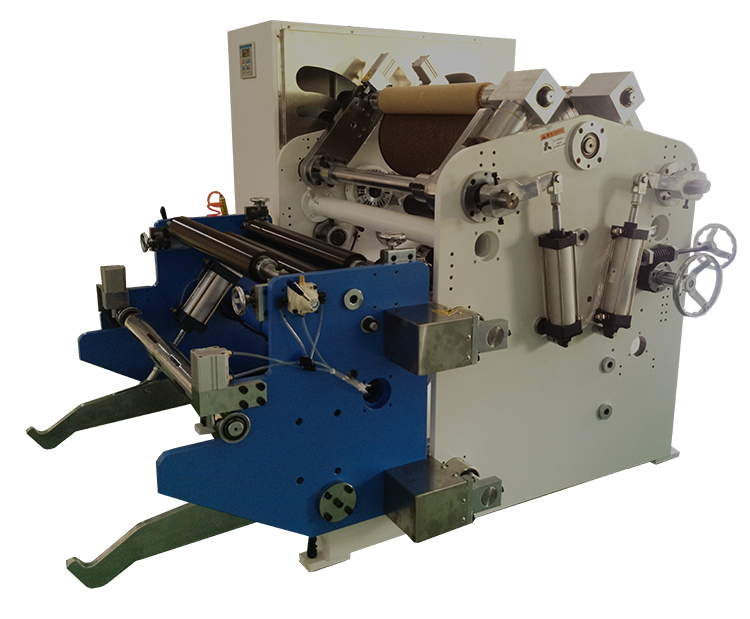

HY-512 Precision Slitting Machine
  • Main feature

  • Application field

  • technical parameter

Features

1. Unwinding adopts pneumatic automatic lifting, integrated feeding structure.

2. Automatic EPC system for edge position correction: ultrasonic sensor, servo system drive.

3. Adopts pneumatic automatic feeding structure, it can reduce the labor of the worker,  has a higher efficiency.

4. Unwinding adopts magnetic powder brake control unwinding tension, automatic tension control system.

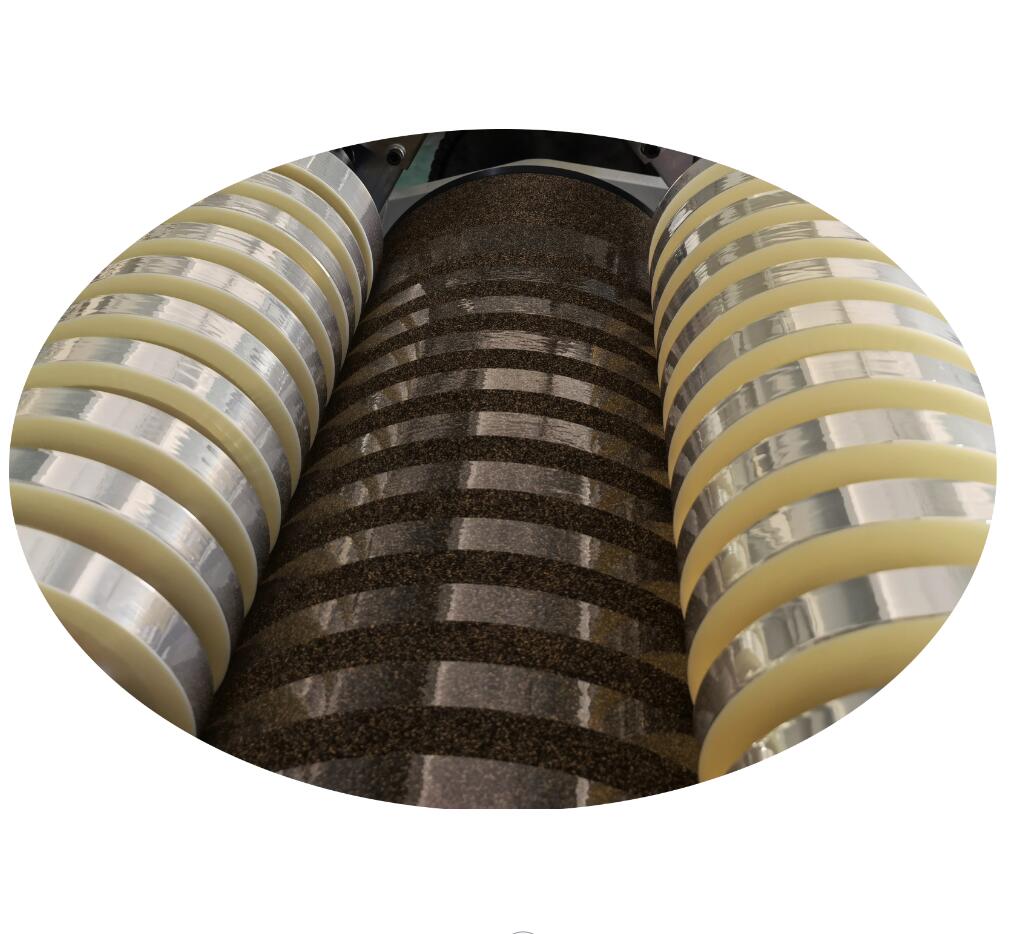

5. Adopts the upper and lower round knife to cut the material, no burr edge, no snake shape (optional: air knife).

6. Adopts dual-axis for rewinding: center + surface winding structure, winding end face is flat.

7. Adopts magnetic powder clutch to control rewinding tension, automatic tension control system.

8. Adopts rotary structure for roll unloading, unloading is more convenient.

9. Main motor adopts frequency conversion to control, large torque vector power output.

10. Automatic length control, when reach the set length machine automatically slow down and stop.

11. PLC programming control, touch screen operation, automatic tension control.
